Classical door

Aluplast Ideal 4000 70 mm door is the house's pride, since they emphasize its character from the very entry. Rich colors profiles, virtually unlimited design possibilities and the possibility to select a variety of fillings, from the classics to the ultra-modern, give you the freedom to shape the facade of your home and mark their individuality. Moreover, the door is expected to provide high level of security and protection against noise and weather conditions.
The characteristic features of aluplast door systems include sturdiness and elegance. Thanks to the multi-chamber structure, embedding depth ranging from 60 to 85 mm and use of the door threshold with heat-insulating liner, they have a very good thermal insulation parameters. Hhigh stability of the leaves through the use of reinforcements with large cross-sections and the use of weldable corner connectors ensure the proper static and strength parameters.
Low door threshold (20 mm high) complies with the requirements for buildings devoid of any architectural barriers and allows for hassle-free entry and exit. Specially shaped foot threshold enables connection with additional system profiles, such as extensions. Wide aluminum drip cap drains water outside.

Okucie Winkhaus - bezpieczeństwo i wygoda użytkowania

Door hinge

High safety standard of multipoint locks provides 2 or 4 solid steel bolts. The bolts penetrate into the hooks mounted on the frame, effectively preventing from balancing the leaf off the frame. In turn, the use of long frame strips causes a uniform distribution of forces impacting the entire length of the door frame. This is an important advantage, which not only increases the stability of the structure, but also makes the lock assembly very simple.

Tilt and slidingdoor

The most popular sliding door at the moment is called PSK (Parallel-Schiebe-Kipp-Tür - parallel sliding and tilting door).
Such structures are built using standard window profiles. Moving the leaves is possible thanks to a special fitting mechanism. After turning the handle from the closed position, the leaf slides into the room, perpendicular to the window surface, and then moves to aside. The door leaf also has a feature of tilting inwards..
PSK sliding doors are available in three main variants of opening:

• 2-quartered - where the leaf moves to the left or right permanent accommodation
• 3-quartered - where the central movable leaf moves to the left or right of permanent accommodation
• 4-quartered - where the middle two leaves move respectively to the left and right permanent accommodation.

Furthermore, PSK doors of leaves moving towards the inside of the building wall are also manufactured. This solution allows you to open the entire window opening. In this case, the rails guiding the fitting mechanism must be attached to the window frame and to the inner wall surface of the building. The frame must be mounted on the veneering items inside, facing the building wall. The maximum dimensions of door PSK leaves are 1600x2100 mm and 1400x2300 mm. The advantages of such solution includereasonable price and high seal tightness. On the other hand, the disadvantages include high threshold in form of a window frame and occurring problems with opening and closing of leaves due to the improper use.

Winkhaus fitting - operational efficiency and structural stability

Floor-to-ceiling glazing is an elegant, modern and increasingly popular solution. Such large windows let plenty of light into the interior, provide beautiful views and make the room begin to "breathe". How to make them functional as well? The new duoPort SK fitting fits perfectly for this application.

duoPort SK fitting

The duoPort SK tilt-sliding fitting is the latest Winkhaus product of this type, based on the activPilot system. It allows you to construct the tilt-sliding windows with sash height coming to 2.7 m, width amounting to 2 m and weighing up to 200 kg! The fitting has the highest sash withdrawal (125 mm) of the tilt-and-slide systems available on the market and can be used for multi-chamber profiles with high-level thermal insulation. This is a vital reasonin case of large glazings, where energy losses can be significant.

In case of such powerful, heavy structures, safety is a fundamental issue. Trolleys are equipped with overload protection devices. Lock of incorrect operation prevents from taking the sashes off the frame by a careless user. Stability and reliability of the system operation is also increased by modified connection of a handle with a fitting and a new air latch articulated mechanism . Basic fitting version is equipped with robust locking pins. Anti-burglar system security level is adjusted by the replacement of an appropriate number of standard for anti-burglary hooks. duoPort SK 160 Z version meets the requirements of DIN V ENV 1627-1630 of the resistance class 2. A characteristic feature of the duoPort SK fitting is a unique smoothness of functioning. Trolley rollers' diameter has been increased by 20 percent in comparison with the existing solutions. This structural change resulted in an increase of comfort of using the sliding doors: the sash moves smoothly and quietly. For the sashes weighing more than 160 kg, stable double carts shall be applied in a one-piece body, which guarantees comfortable movement even of very heavy door.

Lift-and-slide doors

One of the window solutions is PVC lift-slide balcony door, commonly called HST door. The product is widely used in other countries, here it is still a solution being discussed, described in writing, and few have seen it. The HST door is a product designed primarily for the demanding investors. They require high quality products in order to obtain the final result in form of a building fully consistent with their expected utility-related and fucntional needs in terms of the residential space optimum usage and the possibility of shaping it on one's own.

An important advantage of these patio type doors is the feasible structure with a total span of up to 6 meters and maximum dimensions of the leaves, amounting even to 3000x2500 mm. Turning a large handle down from the closed position results in lifting the leaf by a few millimeters releasing the pressure seals and free movement of the leaves.

Winkhaus Hautau fitting - freedom of choice

Atrium HS 300 system enables to construct the balcony door with low threshold, or – in case of covered terraces – with no threshold. The use of flat bottom rails allows disabled people to effortlessly move on a wheelchair. Thermal spacer in the threshold results in good isothermal flow and eliminating the threat of freezing at very low temperatures.

Sliding doors

The advantage of this system is the possibility to design the structure of the door of outer frame 6500 mm wide (it is possible to construct a door sash 3250 mm wide) and 2700 mm high. The sliding sash can weigh up to 250kg. HS fittings 300 allow the doorsashes to move on the same plane without moving the sashes before the movement (as it is the case in HKS 130 and HKS 150 S and Z solutions). The reach rollers are equipped with special brushes, cleaning the track every time you move the door. While moving, the sash is slightly raised, which reduces the friction between the threshold and the seals. To lock the leaves in the desired position, turn the handle vertically down. It should be noted that the manufacturing of the sliding door requires special design of the sash and frame (for wooden door) or special profiles for this type of door (in case of PVC and aluminum). Sliding door can be equipped with two-sided handle closing with lock cylinder. You may choose from white, brown or silver handles. The guiding rails are only silver, while the double door bolt may be silver or bronze.
Atrium HS 300 fitting allows for the execution of really elegant and comfortable patio door.

Multi-point lock with massive bolts

Great comfort of closing is ensured by the conical shape of massive bolts and adjustable sash clamp to the frame (on hooks and frame strips). Well thought-out design of hookLock M lock mechanism causes that on the locked position no forces can impact on the carrier cylinders, and the key can be easily inserted into the lock.

Multi-point lock with a rigid chain

A look through the peephole does not always allow to figure out what the the person behind the door intends to do. A lock with the so-called rigid chain is a convenient and safe solution. It allows you to open the door to a certain width, preventing the person standing on the other side from forcing his/her way inside.

The lock called "rigid chain" is released when the door is unlocked from outside or by an elegant knob mounted on the inside.

Multi-point lock with automatic locking

autoLock locks with automatic locking feature are very convenient solutions. When we do not have time to close the door with a key, it is only required to snap and the lock is bolted automatically. The door left in such a way complies with standard EN 1627 immunity class 2..

How does this happen? After closing the door, two massive lock bolts will be automatically popped up from the lock and they securely lock the door. Unlocking is done by pressing the handle, therefore such locking is usually applied in combination with a handle-pusher or a handrail on the outside.
The massive bolts effectively prevent from balancing a leaf off the frame, also when the door is not closed with a key. Bolts are locked in an end position, so that their withdrawal using card or other objects is very difficult. Additional protection (3-point locking) is ensured by a central bolt. Just one turn of the key lets the bolt slide off completely and bolts the door in the middle. autolock AV2 lock with two massive bolts and one central bolt provides high burglary resistance. It provides additional protection against accidental slipping of the massive bolts and framedamage, ensuring high comfort of closing.

autolock AV2 lock has a Class A security certification issued by VdS, German certification body.
Compatible with other Winkhaus locks

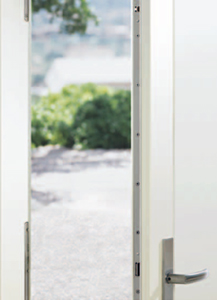

Zamek autoLock

autoLock lock. autoLock AV2 lock has the same dimensions and the same hole pattern as hookLock M lock with 3 bolting points. Another advantage is the possibility to use standard hooks and frame strips. Tolerance of pressure control of the sash to the frame on the hooks amounts to +/- 2mm.

• automatic bolting (with 2 massive bolts) after closing the door properly
• locked massive tamperproof bolts
• suitable for doors with increased resistance to burglary (WK 2 and WK 3 according to EN 1627)
• possibility to be combined with other Winkhaus locks and frame elements
• AV2OR 179 autolock option (without central bolt) meets EN 179 requirements and can be used in the emergency door
• possibility of electro-lock installation (blueMatic EAV)
• convenient, non-contact entrance door unbolting via electric drive

Automatically locking Multi-point lock with electric opening

Automatically bolting, 3 -point blueMatic EAV lock with electric opening is an exceptionally comfortable solution. At the moment of closing the door properly,it is automatically bolted by a latch (in the middle part) and two massive bolts (on the top and bottom of the door leaf). The shape of the massive bolts and structure of the frame parts allow to make difficult to force leaf-frame connection.

Opening the door bolted from the outside is done by 12V electric motor , which will undo the massive bolts and the latch. You can control the opening of the lock via a remote control, transponder or other opening devices not requiring keys. From the inside the door is open traditionally, with a handle.


High level of safety and comfort

3-point blueMatic EAV lock with electric opening hinders any efforts to balance the leaves off the frame using the tools. The massive bolts are locked in end position, which makes them highly resistant to tampering by means of various objects, as well as to opening by a credit card.
Manual turning the key in the cylinder causes the main bolt to move out, which is an additional security device in the middle part of the door.
blueMatic EAV lock is characterized by high resistance to burglary, certified by reputable institutes. The lock is certified by VdS (German organization of insurers - Verband der Versicherer), Class A.
Exceptional comfort of using the blueMatic locks is influenced not only by automatic bolting, but also locking of unintentional bolts ejecting, which helps avoid possible frame damage.

Compatibility

The automatic blueMatic EAV lock has the same dimensions, and therefore requires the same millings, as standard 3-point hookLock M locks. Importantly, in combination with this type of locks, hooks and frame strips from standard Winkhaus offer are used. Hooks with adjustable pressure of leaf to the frame allow you to compensate for dimensional variations within the range of +/- 2mm.

• automatic bolting with two massive bolts at the moment of closing the door properly
• high resistance to burglary (class 2 or 3 according to ENV 1627-1630)
• high level of tamperproof protection
• thanks to modular design of Winkhaus locks, there is a possibility to equip the AV2 autoLock with an engine and obtain an additional electrical opening function
• non-contact entrance door unbolting (massive bolts and a latch) with an electric motor
• compatible with other products included in Winkhaus multipoint locks offer.
